Full Stainless steel differentialpressure gauge
150mm stainless steel differentialpressure gauge
Description 150mm stainless steel differential pressure gauge
AF-150B differential pressure gauge is suitable for chemical industry, chemical fiber, metallurgy, electricity, nuclear power and other industrial sectors in the process of measuring a variety of liquid (gas) medium differential pressure, flow and other parameters. The instrument structure is all made of stainless steel, the test system (double corrugated pipe and connecting parts), pressure pilot system (including joint, pipe) made of special stainless steel, has strong corrosion resistance and anti erosion effect of work environment. The instrument has the advantages of reasonable design, advanced technology, small size, light weight, good stability, long service life, novel appearance and strong adaptability. The connection form of the instrument connector is parallel (which can be directly connected with the three valve group) and the oblique type, and the utility model can be used for the matching installation of different users.

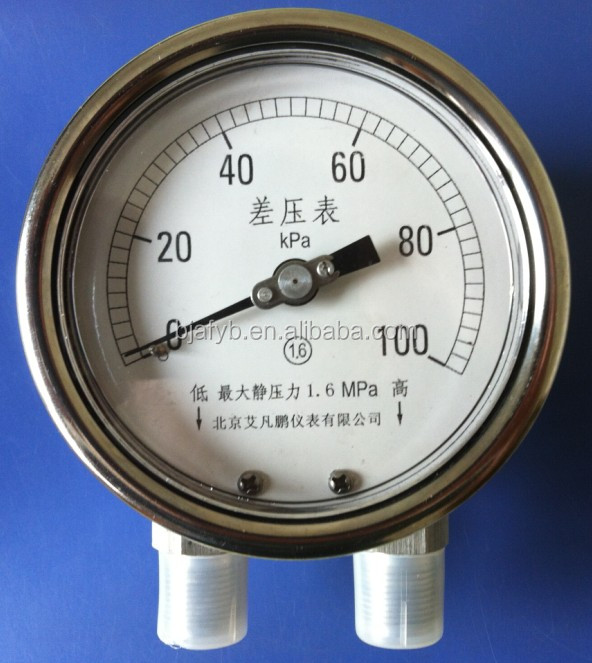

Detailed Images 150mm stainless steel differential pressure gauge
Specification 150mm stainless steel differential pressure gauge
1.Differential pressure measuring range, nominal working pressure, accuracy grade and joint thread:
| Measuring range | Nominal working pressure | Accuracy class | Joint thread size |
| 0-10 0-16 0-25 0-40 0-60 0-100 | Kpa | 60 100 160 250 400 600 | Kpa | 2.5 | M20*1.5 NPT1/2 |
| 0-0.16 0-0.25 0-0.4 0-0.6 0-1 0-1.6 0-2.5 | Mpa | 1 1.6 2.5 4 6 10 10 | Mpa |
2. Guide system and shell material:
| Part name | Material grade (code) |
| Joint, catheter | Ocr17Ni12Mo2 (316) |
| corrugated pipe | OOCr17Ni14Mo2 (316L) |
| Case, watch cover, watch ring | Ocr18Ni9 (304) |
1)How do you ensure product quality?
Pressure Gauges and Thermometers have a complete quality control system, products are 100% pre-inspected by IQC, OQC departments before ship to our clients.
2)How fast can you deliver goods?
For small orders can be delivered within 7-15 working days; for bulk orders, usually 25 working days.For urgently order, we can arrange expedited production.
3)What is your MOQ?
There's no MOQ limits, 1 piece for test at first is acceptable.
4)What is your production capacity and can you offer free samples?
Our production capacity is about 100000 pieces per month. Yes, we offer free samples, but you should pay for the shipping cost at first, the cost would be returned to you after bulk order confirmed.
5)What detailed information do we need to provide before placing an order?
application, pressure range, output, accuracy, thread type, electric connector and other related parameters.
6)What types of payment terms and trade terms can you accept?
Payment terms:TT, Western Union, Money Gram, etc
Trade terms: Ex. Works, FOB, etc.
7)What express ways can you offer, can we use our own courier?
We deliver goods by DHL, TNT, UPS, SF, EMS, Customized courier is acceptable.
